1、Fruit spray cleaning machine

(Apply for cleaning soft and easily damaged fruits such as mulberries, strawberries, and mold)

The materials are slowly washed in water through the conveyor belt, and there is a spray at the discharge end, which is particularly suitable for cleaning soft and easily damaged fruits such as mulberries, strawberries, and mold. Comes with built-in upgrades for easy connectivity.

Parameter

Processing capacity ton/hour: 1-10

Power consumption Kw: 2.75

Dimensions mm: 3000 × 1050 × 1650

(Based on actual production)

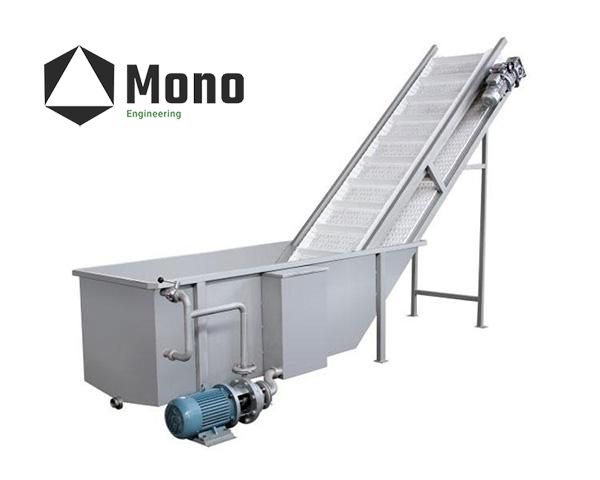

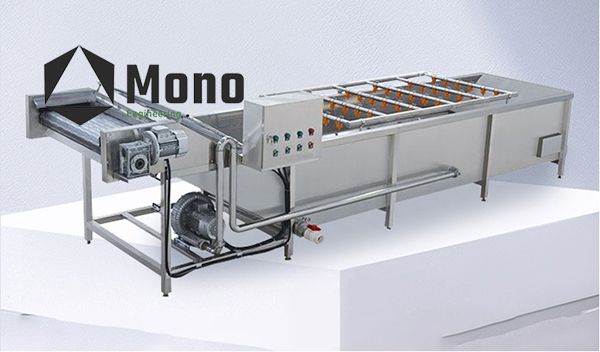

2、Vegetable & fruit bubble cleaning machine

(Apply for cleaning fruit and vegetable raw materials,energy and water conservation)

This device has the characteristics of high cleanliness, energy and water conservation, and stable and reliable equipment under the joint work of bubble, lifting, spraying, and fruit selection.

Suitable for cleaning fruit and vegetable raw materials;

The flushing water is filtered and recycled for use;

Equipped with anti floating net, with built-in lifting and convenient connection;

Design according to the characteristics of fruits and vegetables and process requirements

Parameter

Production capacity T/h: 20-40

Power KW: 6.3

Dimensions mm: 8000 × 1400 × 2000

(Based on actual production)

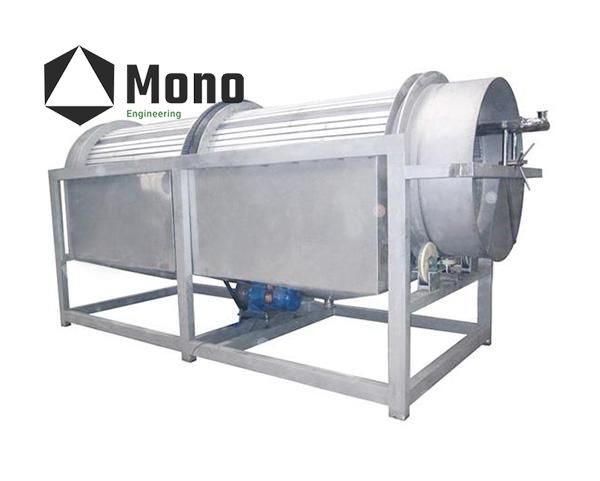

3、 Strong power drum type cleaning machine

(Apply for cleaning fruits and vegetables grown in soil, such as carrots, apples, oranges, potatoes, potatoes, etc)

This machine is widely used for fruits and vegetables such as carrots, apples, oranges, potatoes, and potatoes, and is particularly suitable for cleaning fruits and vegetables grown in soil.The discharge is controlled by a gate valve;Equipped with two rows of fan-shaped high-pressure spray devices;

Parameter

The transmission is mechanical speed regulation;

Production capacity T/h: 20-40

Power KW: 4

Dimensions mm: 3500 × 1350 × 2200

(Based on actual production)

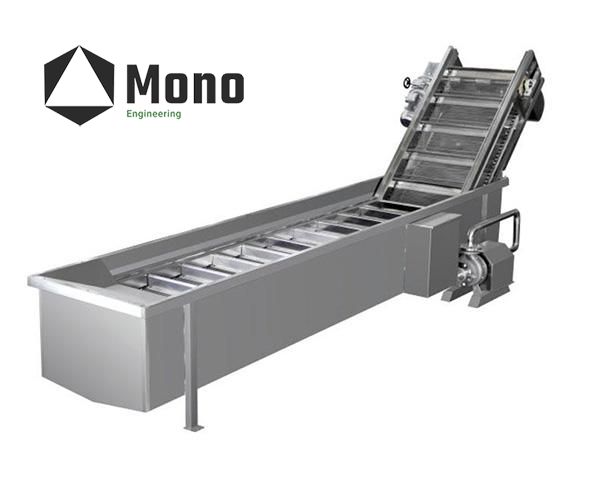

4、Vegetable & fruit surfing style cleaning machine

The surfing style cleaning machine uses the fan high-powered wind power to generate strong stirring motion in the water, causing the materials to roll in the water. At the same time, the high-pressure water pipe nozzle installed at the feeding port pushes the materials towards the direction of the elevator with hydraulic force. The cleaned fruits and vegetables are input into the next process by the elevator. This equipment is an essential machinery in fruit and vegetable juice production lines, widely used for cleaning vegetables and fruits, easy to use, and has significant water-saving effects.

Parameter

Production capacity: 1-20

Power consumption: 2.75-6.6kw

Dimensions: 3600 × 1350 × 1650mm

Elevator conveyor chain line speed: 5-25m/min

(Actual production shall prevail)

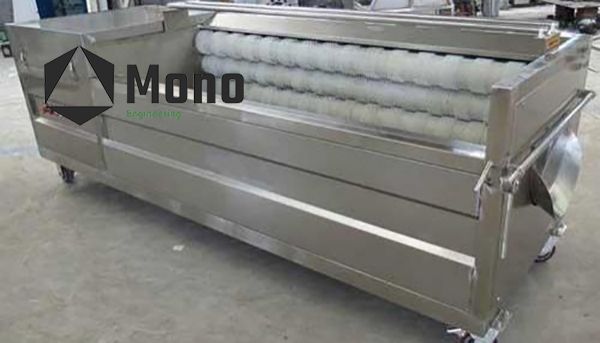

5、Round fruits & vegetables brush Peeling and Cleaning Machine

(Apply for cleaning and peeling of root and stem materials such as carrots, white radishes, potatoes, sweet potatoes, apples, oranges, scallions, yams, peppers, ginger, etc)

This device is used for processes such as brushing and peeling round and round fruits and vegetables. For example, cleaning and peeling of root and stem materials such as carrots, white radishes, potatoes, sweet potatoes, apples, oranges, scallions, yams, peppers, ginger, etc. It has the characteristics of large effective cleaning volume, high efficiency, water saving, continuous cleaning, simple operation, and long service life.

Composed of multiple brush rods, the material is slowly pushed forward by a spiral brush; Equipped with a specially designed high-pressure fan-shaped spray head for flushing.

Parameter

throughput: 1-10t/h

Power consumption: 0.55-3kw

External dimensions: 3000×1250×1580

(Actual production shall prevail)
