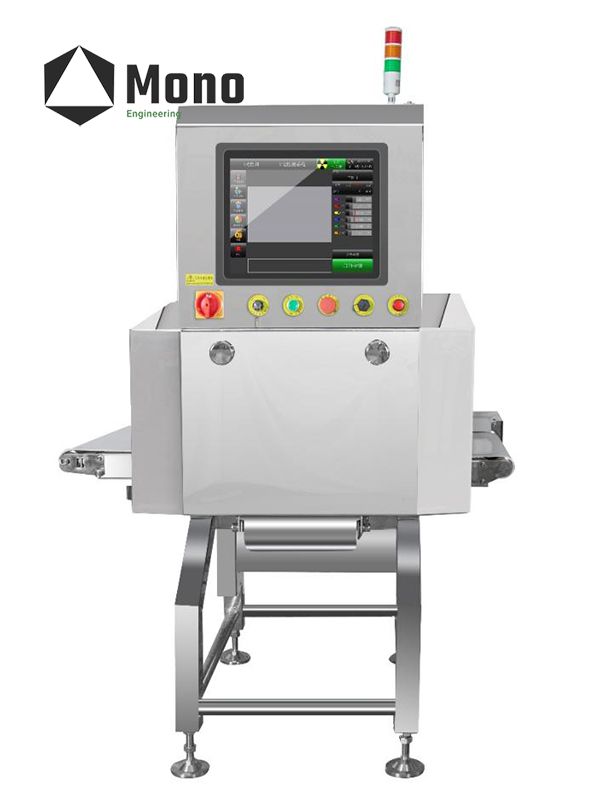

X Ray Machine Suitable for packed or unpacked food such as meats,seafoods, snacks... especially for aluminum foil package
Technical specification
Parameter | Value |
Max. Sensitivity | Fe/SUS ball φ0.4 SUS wire0.2*5 Quartz ballφ1.5 |
Max. Tube voltage | 30 ~ 90kV |
Max. Tube current | 0.2 ~ 3mA |
Max. Tube power | 150W |
Radiate leakage | Less than 1uSv/h |
HMI | 15 Inch touch screen |
Belt width | 420mm |
Available detection width | Max 400mm |
Recipe memory | Max. 100 |
Conveyor payload | Max. 10kg |
Rejector type | Air blast/pusher/flap/Drop off |
Alarm | Buzzer/Light |
Power supply | AC 110/220, 50/60Hz, single phase |
Rated power | Appr. 1.2kw |
Dimension | 1048mm(L)*800mm(W)*1922+100mm(H) |
Net weight | 200kg |
Operation condition | 0~40 degree Celsius, humidity 30~85% (without condensation) |
Protection level | IP66 (conveyor) |
Body material | SUS304 |
Surface processing | Mirror/brushed |
Application :
Fragment of metal, glass, stone, bone, rubble,
Plastic detectionEspecially for aluminium foil package detection
Cost-effect design
Advantage:
Built in quality, stable and durable componentsParticular graphic processing algorithm which
increased contamination detectability
Ul is based on Windows OS which support multiple languages and easy operation
Automatic products learning and parameters generation
Multi-Points security sensor to prevent radiation leakage
Easy for image files operation and export
Connecting to various of rejectors
Fast convey belt release for daily clean
