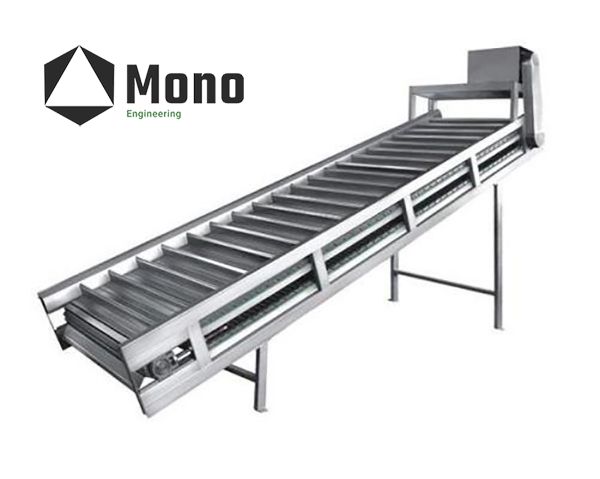

1.Mesh lifting conveyor belt

Using plastic steel mesh belt baffle or woven polypropylene resin belt baffle as the carrier, it is suitable for material lifting and conveying in various food industries. Spray and water collection devices can be designed according to requirements

parameter

Conveying capacity: 6 (t/h)

Power: 1.1 (KW)

Conveying distance: 6 (m)

Dimensions: 6 * 0.6 * 0.8 (m)

Weight: 500 (kg)

Applicable field: Food processing material conveying

Material: Stainless steel

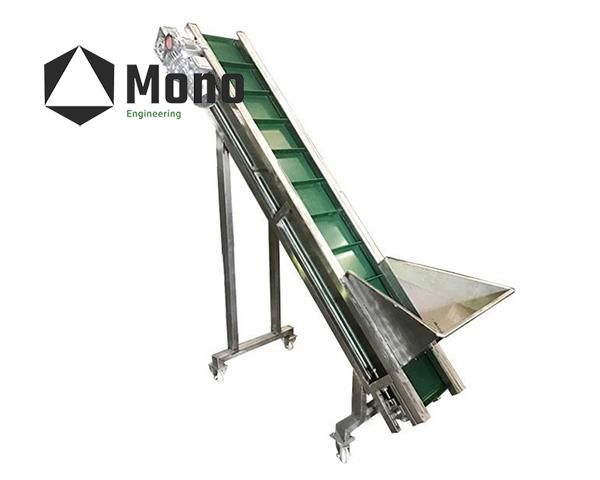

2.Irregular Fruit and Vegetable Belt Conveyor belt

Apply for the horizontal transportation of tomatoes, strawberries, apples, pears, apricots, carrots and other fruits, or for the lifting transportation of fruits and vegetables that are difficult to slide, such as Pickled vegetables)

Belt conveyors are suitable for transporting irregular items, bulk materials, and parts with height differences. They are equipped with workbenches on both sides of the belt conveyor, and the working rhythm is characterized by disorder.

Forms: horizontal conveying and lifting. This equipment is used for the horizontal transportation of tomatoes, strawberries, apples, pears, apricots, carrots and other fruits, or for the lifting transportation of fruits and vegetables that are difficult to slide, such as Pickled vegetables, and can add a stainless steel picking platform for selection or processing. Single layer, double-layer, three-layer, etc. can also be selected according to product requirements to match the characteristics of different materials.

Parameter

Effective width: 300-1200mm

Elevation angle:< 45°

Single driver length limit: 1000-10000mm

Conveyor speed: maximum 32m/min (adjustable)

Motor power: 0.18 Kw/0.37 Kw/0.55 Kw/0.75 Kw/1.1 Kw/1.5 Kw/2.2 Kw

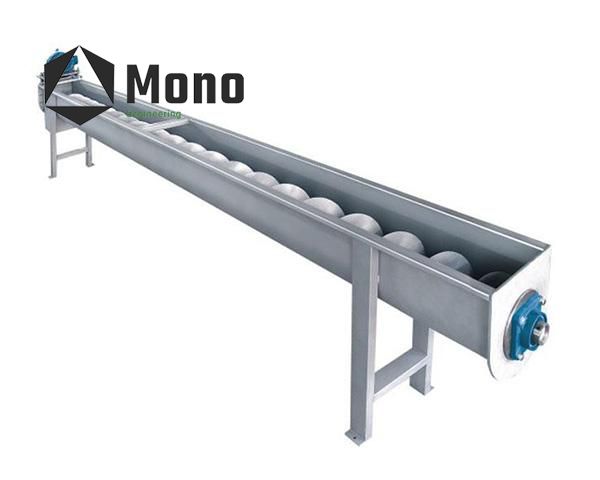

3. Electric horizontal spiral conveyor belt

This equipment is a mechanical device that uses a reducer to drive a spiral rotation and push materials to achieve conveying purposes. It has the advantages of simple structure, small cross-sectional area, easy enclosed conveying, and can be used for multi-point feeding or unloading.

Shell form: "o" or "u" shape;

Spiral form: shaftless, single axis or multi axis;

Large carrying capacity, safe and reliable.

Strong adaptability, easy installation and maintenance, and long service life.

The whole machine has a small volume, high speed, and ensures fast and uniform conveying.

The discharge end is equipped with a cleaning device, which has low overall noise, strong adaptability, and flexible layout of the inlet and outlet positions.

Good sealing performance, the shell is made of seamless steel pipe, and the ends are connected to each other with flanges to form a whole, with good rigidity.

Parameter

Effective width: 200-400mm

Elevation angle: ≤ 45°

Single driver length limit: 1000-10000mm

Conveyor speed: maximum 27m/min (adjustable)

Motor power: 0.37/0.55/0.75/1.1/1.5/2.2Kw

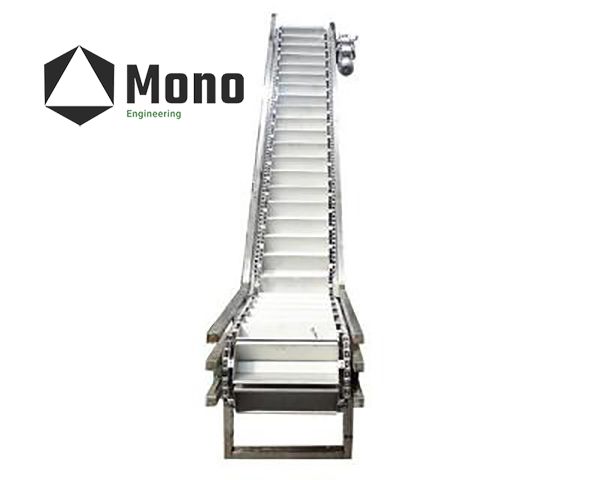

4.Stainless steel chain plate conveyor belt

The conveyor chain of this machine has three types of components:

The folded flat plate and baffle are fixed on a curved plate chain, which is a large roller chain. The ball bearings rub against the wear-resistant plastic pad, resulting in low noise and durability;

The composition of polyester mesh belt and baffle that complies with food hygiene;

The injection molded plastic chain plate and pin shaft that comply with food hygiene are directly assembled, with the characteristics of light weight and easy disassembly and assembly;

Parameter

Effective width: 300-1200mm

Elevation angle: ≤ 45°

Single driver length limit: 1000-10000mm

Conveying capacity: 15Kg/m

Conveyor speed: maximum 25m/min (adjustable)

Motor power: 0.18 Kw/0.37 Kw/0.55 Kw/0.75 Kw/1.1 Kw/1.5 Kw/2.2 Kw

Production capacity: 2.5, 3, 5, 10, 20, 30T/h;

Height increase: determined according to user requirements;

Equipped with a continuously variable transmission, the speed of the conveyor chain can be adjusted for easy connection;

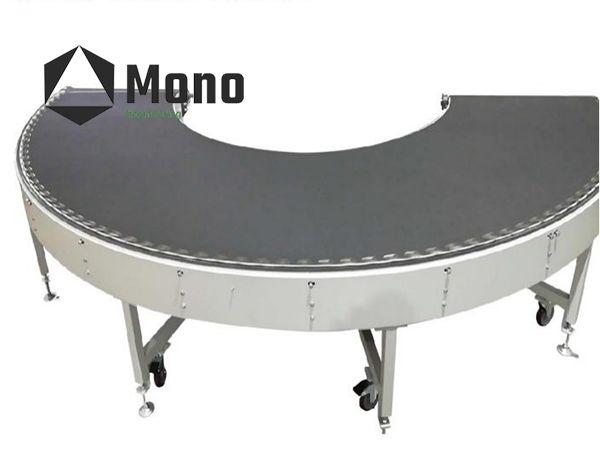

5.Turning conveyor belt

The curved conveyor adopts a triangular belt transmission method, which can achieve forward and reverse operation.

parameter
