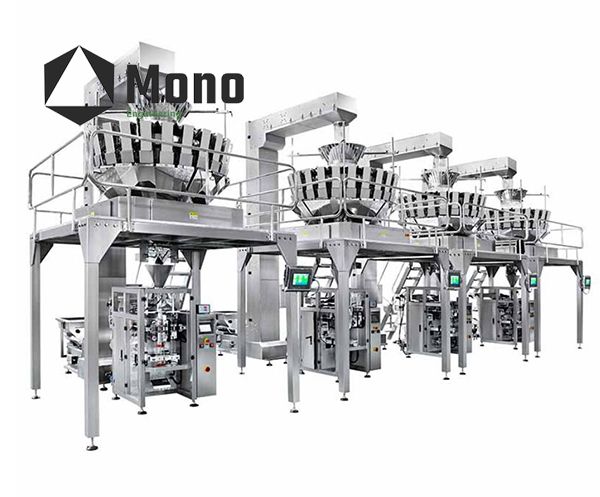

1.Vertical automatic weighing and packaging machine

Suitable for automated packaging of irregular block and granular materials, such as puffed foods, potato chips, crispy rice cakes, jelly, candies, pistachios, apple slices, dumplings, cookies, dried fruits, melon seeds, stir fried goods, soup gardens, medicinal herbs, frozen foods, etc.

This automatic weighing and packaging system includes

① Vibration feeding Z-shaped particle material lifting equipment

② Computer combination weighing equipment

③ Automatic vertical packaging equipment

④ Work maintenance platform

⑤ Finished product conveying equipment

Parameter

Bag size: (L)80-300mm(W)80-200mm

Packaging speed: 25-75 Bags/Min depending on the speed of the measuring machine

Power supply: 220V 50-60HZ 3.0 Kw

Compressed air: 6-8 kg/m2 0.15 m3/min

Weight: 500 Kg

Size: 1450x1000x1500 (mm)

2.Powder vertical automatic packaging machine

This vertical bag making fully automatic packaging machinery can complete tasks such as bag making, measuring, filling, nitrogen filling, coding, and bag cutting. Suitable for packaging granular materials such as milk powder, solid beverages, white sugar, glucose, coffee, feed, solid medicine, granular additives, dyes, etc.

Parameter

Bag size: (W)80-200mm (L)100-300mm

Packaging accuracy: ≤ 1%

Packaging speed: 25-60bag/min

Power Supply: Three phase 380/220V 50-60 Hz

Power: 6 kW

Air pressure: 6-8 kg/cm ²

Gas consumption: 0.2m3/min

Whole machine weight: 700kg

Dimensions: 1300x1500x2600mm

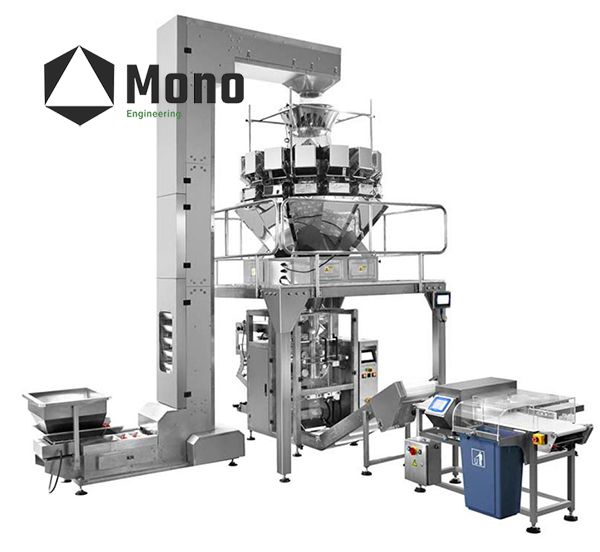

3.Multihead Weigher Packing Machine

PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

External film releasing mechanism: simpler and easier installation of packing film.

Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .

Close down type mechanism , defending powder into inside of machine.

Technical parameter:

border-width: 1px; border-style: outset; border-color: windowtext;  background: rgb(255, 255, 255);">

80-370mm(L)

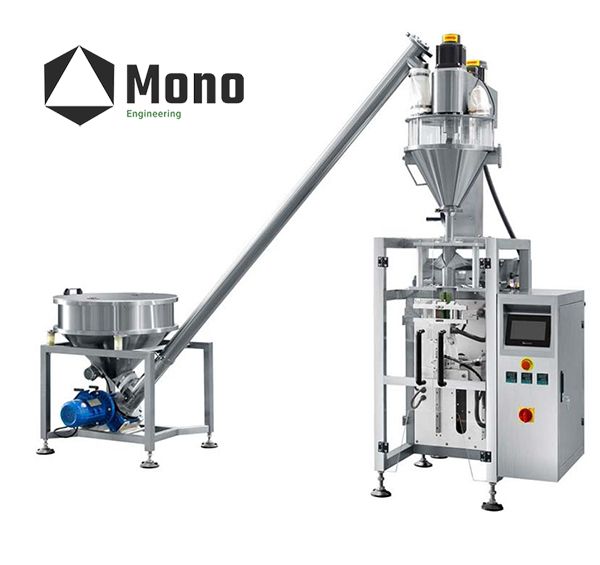

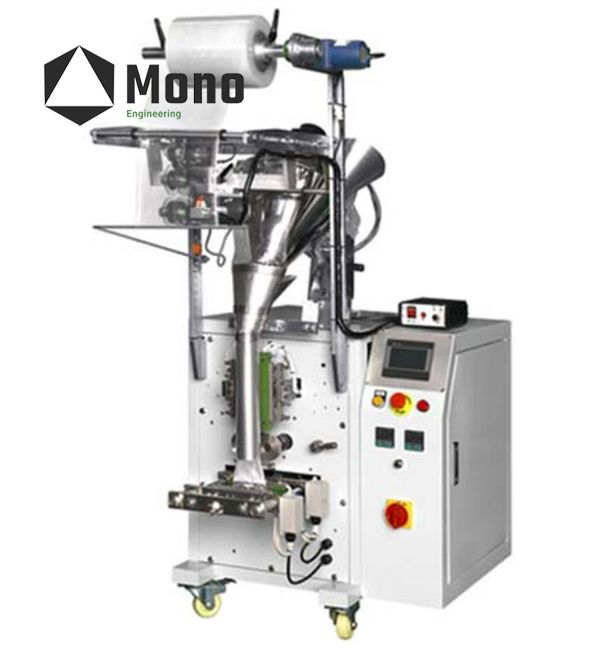

4.Small Vertical Packing Machine

Application:

All kinds of powder, such as flour, milk powder, bean powder, coffee powder, etc. It is suitable for packing within 300g.

Technical Parameters:

Technology Characteristic:

Screw measuring, adjustment weight without any tool, with stable function, simple operation.

With advance photoelectric control system (PLC), adjustment any parameters not need stop machine.

It can finish bag making, measuring, sealing, cutting, date printing and product output in one operation.
