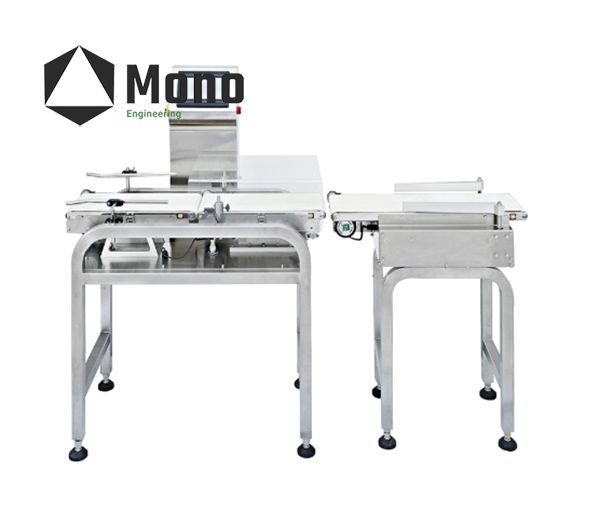

1.1 Normal bag Weight detection machine

This machine is used to detect whether the weight of a single product matches the set target, and the sorting device automatically eliminates products that do not meet the standards.

Advantage:

Intelligent design, automatic parameter adjustment, easy operation.

It has material over density alarm and automatically generates column production report.

The conveyor belt structure adopts a detachable design, which is convenient for disassembly and cleaning.

PLC control system, standard industrial control screen, easy to expand other value-added applications, such as multi-stage weight sorting, weight feedback, etc.

Parameter

Weighing range ：10-1000g

maximum linear speed ：52m/min

maximum speed ：80P/M

belt size：450 (L) x220 (W)

removal method ：blowing/pulling/pushing/sliding

power requirements ：220V/400W/50/60Hz/2A

packaging size ：980 (L) x800 (W) x1290 (H)

packaging weight ：180Kg

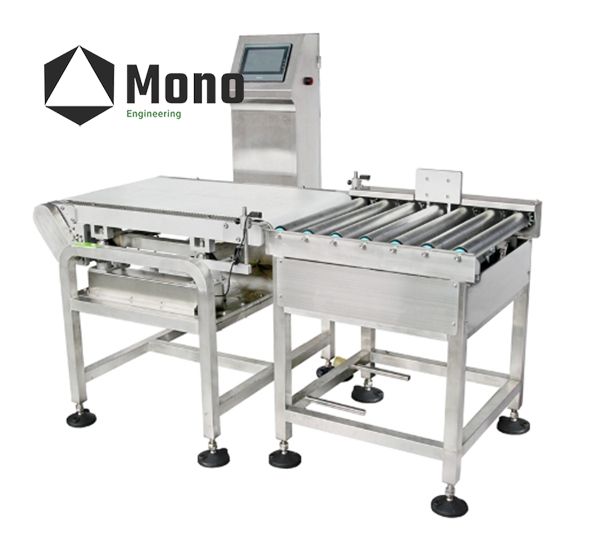

1.2 High precision weight detection machine

This machine is used to detect whether the weight of a single product matches the set target, and the sorting device automatically eliminates products that do not meet the standards.

Advantage:

New highly integrated modular control system.

Fault alarm information is displayed directly in text.

The conveyor belt structure adopts a detachable design, which is convenient for disassembly and cleaning.

The parameter "self-learning" adjustment function simplifies the parameter setting process.

Provide comprehensive production quality statistics data, including weight distribution bar chart, total production weight, number of qualified packages, qualification rate, number of non-conforming packages, actual weight of non-conforming products, and production time.

Parameter

Weighing range：5-200g

Maximum linear velocity：80m/min

maximum speed：150P/M

Belt size：450(L)x100(W)

Operation interface：7-inch touch screen

Elimination method：Blowing type

Power requirements：220V/400W/50/60Hz/2A

Packaging size ：1450(L)x570(W)x1280(H)

package weight：100kg

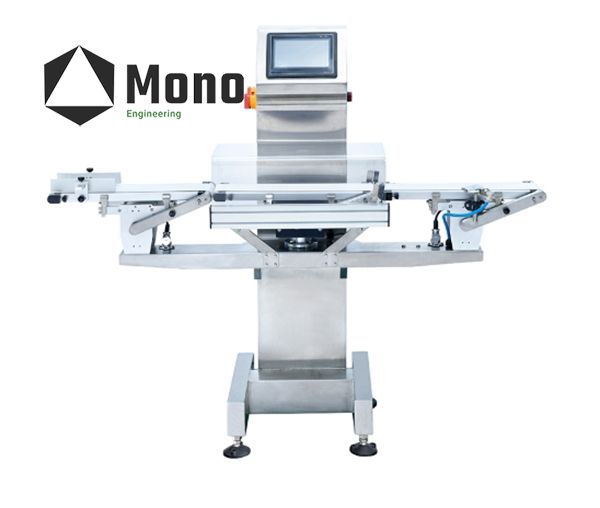

1.3 30kg weight detection machine

This machine is used for soft and hard packaging products such as bulk paper bag packaging, plastic packaging, paper box packaging, metal film packaging, etc. The maximum sorting weight can reach 30KG, with stable working conditions, high-speed and high-precision performance, and automatic removal of unqualified products.

Parameter

Weighing range:5000-30000g

Maximum linear velocity:35 m/min

maximum speed:30 P/M

Belt size:860(L)x500(W)

Operation interface:7-inch touch screen

Elimination method:Push rod type

Power requirements:220V/600W/50/60Hz/3A

Packaging size:1650(L)x1150(W)x1390(H)

package weight:260kg

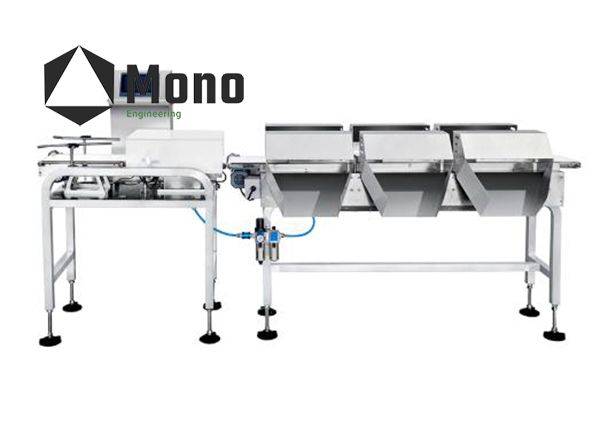

1.4 Multi level agricultural product weight detection machine

This machine is suitable for material sorting and weighing in industries such as agriculture, aquaculture, and industry. The packaging status of materials can be in the form of bags, boxes, etc.

Advantage:

Intelligent design, automatic parameter adjustment, easy operation.

It has a material over density alarm and automatically generates a cylindrical production report.

The conveyor belt structure adopts a detachable design, which is convenient for disassembly and cleaning.

PLC control system, standard industrial control screen, easy to expand other value-added applications, such as multi-stage weight sorting, weight feedback, etc.

Parameter

Weighing range:100-1000g

Maximum linear velocity:62 m/min

maximum speed:100 P/M

Belt size:450(L)X220(W)mm

Operation interface:7-inch touch screen

Elimination method:Blowing/Pulling/Push/Sliding

Power requirements:220V/600W/50/60Hz/3A

Packaging size:1820(L)x1300(W)x1290(H)

package weight:250kg
