Premade pouch packing machine advantage
Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

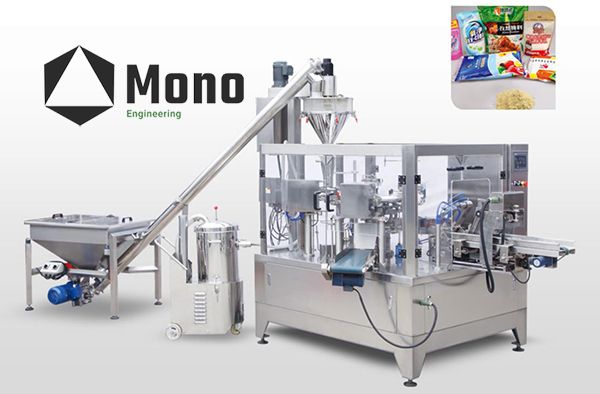

1.Powder pouch packing machine
The powder packing machine is suitable for powder material,such as milk powder,flour,coffee powder,seasoning,additive,chemical supplies and other powder material automatic packing.
Technical specification
Working position | eight-working position |
Bag material | Laminated film/pe/pp |
Bag pattern | Stand-up with zipper & spout,stand-up ,flat bag, |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1.5% |
Bag size | W:100-200mm L:100-350mm (could be customized) |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m³/min |

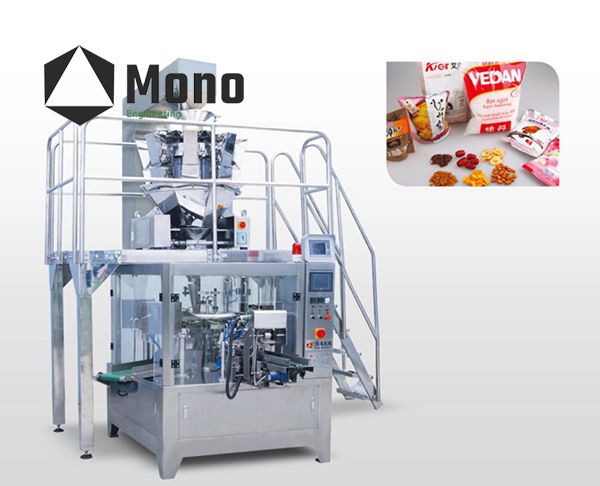

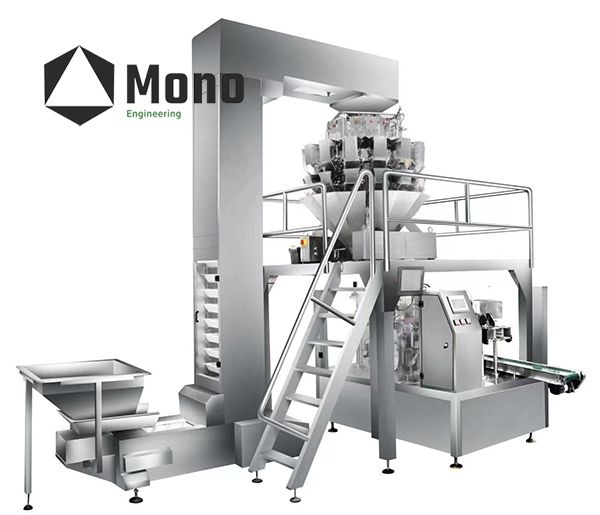

2.Granule pouch packing machine
The Granules packing machine is suitable for granule material, such as Melon seeds, Nuts, Candy, Raisins, Chinese wolfberry, red dates, Potato chips, cookies and other solid material automatic packing.
Technical specification
Working position | Six-working position |
Bag material | Laminated film/PE/PP |
Bag pattern | Stand-up with zipper & stand-up, spout, flat bag, |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1.5% |
Bag size | W:100-200mm L:100-350mm (could be customized) |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m³/min |
3.Drying Fruit Pouch Packing Machine
The Granules packing machine is suitable for drying fruit material, such as Drying persimmon, Potato chips, Mango, and sticky or unsticky material automatic packing.
Technical specification
Working position | Six/eight-working position |
Bag material | Laminated film/PE/PP |
Bag pattern | Stand-up with zipper & stand-up with spout, flat bag, |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1% |
Bag size | Type 1 W:100-200mm L:100-350mm |
Type 2 W:150-260mm L:100-350mm | |
Type 3 W:200-300mm L:200-450mm | |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m³/min |
Detecting device | 1.No ribbon, alarm and Emergency stop |
2.No pouch or pouch open error, no filling, no sealing | |
Safety device | 1.Open the door, alarm a Emergency stop(Optional) |
2.The air pressure not enough, alarm | |
3.the sealing temperature anomaly, alarm |

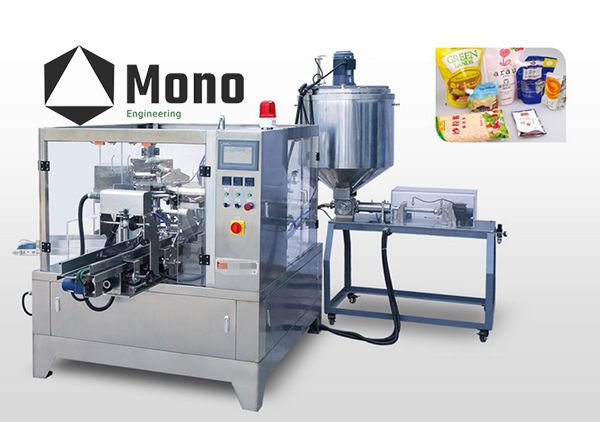

4.Liquid pouch packing machine
This automatic packing machine unit is specialized in liquid and paste such as juice,ketchup,béchamel,capsicum paste,liquid soap and edible oil etc.This machine includes the rotary packing machine can liquid & paste filler.
Technical specification
Working position | Six/eight-working position |
Bag material | Laminated film/PE/PP |
Bag pattern | Stand-up with zipper &stand-up with spout,flat bag, |
Max filling weight | 10-5000ml |
Filling accuracy | 0.5-1% |
Bag size | Type 1 W:100-200mm L:100-350mm |
Type 2 W:150-260mm L:100-350mm | |
Type 3 W:200-300mm L:200-450mm | |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m3/min |
Detecting device | 1.No ribbon, alarm and Emergency stop |
2.No pouch or pouch open error, no filling, no sealing | |
Safety device | 1. Open the door, alarm a Emergency stop(Optional) |
2.The air pressure not enough, alarm | |
3.the sealing temperature anomaly, alarm |
