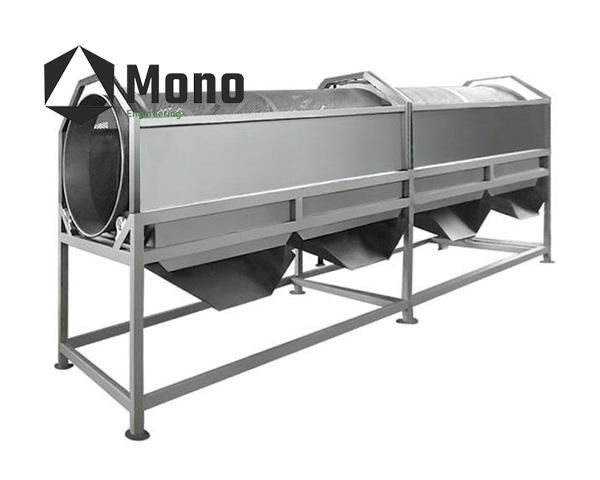

1.1 Drum Vegetable Size grading machine

(Apply for fruits and vegetables such as hawthorn, walnuts, and red dates)

This device uses circular holes of different sizes on the drum to achieve grading. The machine has a simple structure and thorough grading, suitable for grading fruits and vegetables such as hawthorn, walnuts, and red dates.

Specification:

Production capacity: 2-10t/h

Power consumption: 6Kw

Grading level: Level 5

Dimensions: 8700 × 1420 × 1750mm

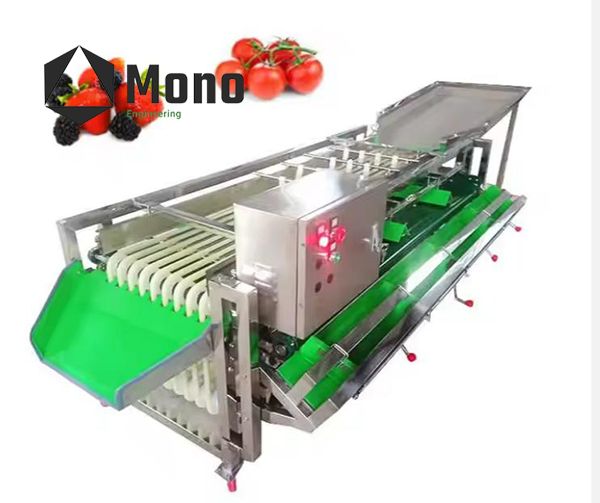

1.2 Small fruit Size grading machine

(olives, dates, walnuts, mushrooms, asparagus, Strawberry,Lemon, Tomato, or Potato etc )

The belt type classifier mainly utilizes the gap between PU belts to classify and process fruits according to different sizes. The fruits fall into the receiving groove with appropriate aperture and are discharged through the guide port without damaging the materials.

Characteristic:

1. Adopt a trumpet shaped grading system to standardize the spacing between grading holes

2. The PU belt comes into direct contact with the fruit, smooth and round, and does not damage the material,

3. The material can be divided into four grades according to size, and the size can be customized as needed.

4. Suitable for classifying round/oval fruits and vegetables such as olives, dates, walnuts, mushrooms, asparagus, Strawberry,Lemon, Tomato, or Potato etc

Specification:

Packaging size: 2156 * 1136 * 951mm

Grade: Level 4

Voltage: 220V/380V

Power: 0.75kw

Production capacity: 250-500kg/h

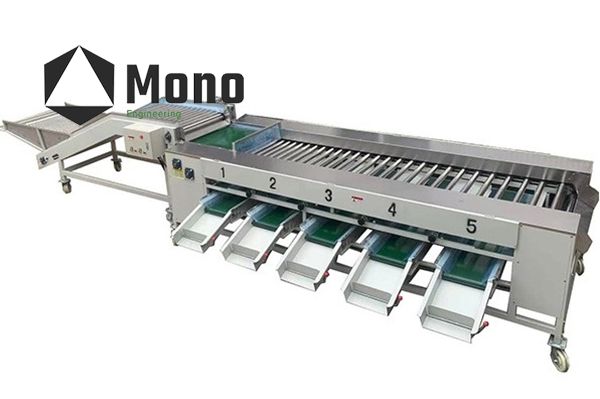

1.3 Rolling bar shaped Size Sorting Machine

(apply for Round and oval fruits and vegetables such as cherry, lychee, jujube, hawthorn, potato, tomato, mango, orange, onion)

This machine consists of a hoist and a grading machine. By rotating in a double helix, it drives the rolling bar on the grading bed to move forward in parallel and gradually increase the gap between the rolling bar to achieve the corresponding size of fruits and vegetables. The fruits fall from the gap between the rollers onto the fruit conveyor belt to complete the fruit sorting process. Suitable for cleaning, sorting, and processing round and oval fruits and vegetables such as cherry, lychee, jujube, hawthorn, potato, tomato, mango, orange, onion, etc.

Specification:

Adjustable speed: 8-40r/min

Classification category: customized according to user requirements

Processing capacity: 1-10 tons/hour

Customization can be made according to customer requirements

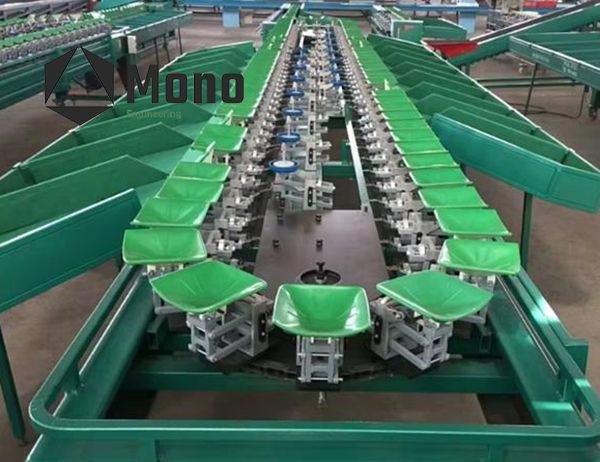

1.4 Automatic Weight Grading Sorting Machine:

(Suitable for fruits such as dragon fruit, apple, orange, peach, apricot, pear, honey, lemon, kiwi, pomegranate, etc.)

Product features:

1. The weight classifier not only ensures the accuracy of product weight, reduces production waste caused by weight exceeding the standard value, but also greatly improves the production efficiency of enterprises.

2. Save labor. A weight classifier can replace about 6-10 people.

3. Reduce opportunities for manual contact with products and comply with food safety requirements

The grading section parameters of the product can be freely set according to needs

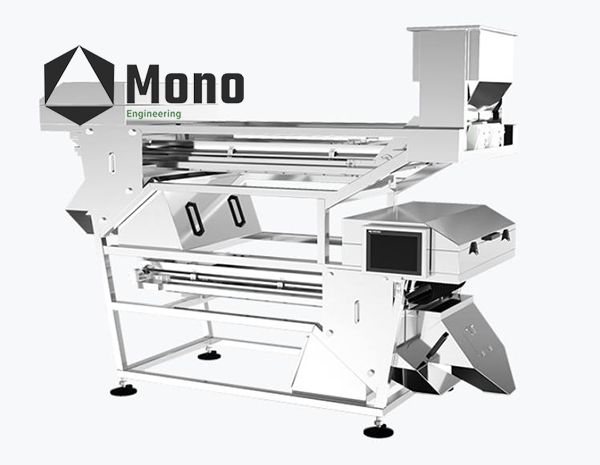

1.5 Belt type Color Sorting Machine

Suitable for sorting and grading a variety of irregular, large-sized, easily broken and water-containing agricultural products. it can achieve the sorting of "small target" defect impurities in complex scenarios, and can remove imperfect grains such as different-color grains, broken grains, moldy grains, worm-eaten grains, and impurities such as glass, plastic, and sand.

Application:

Nuts and roasted goods: sunflower seeds, sunflower kernels, peanuts, peanut nuts, pecans, watermelon seeds, trichosanthes seeds, gourd seeds, pine nuts, almonds, macadamia nuts, pistachios, pecans, cashews, walnuts, almonds

Legumes: broad beans, red kidney beans, kidney beans

Chinese medicinal materials: astragalus, white peony, licorice, almonds, angelica, peach kernels, schisandra, corydalis, polygala, isatis root, lily, chrysanthemum, dendrobium, bupleurum, cloves, cyathula, cornus officinalis, glossy privet, kudzu root, codonopsis, pinellia

Spices: garlic, chili, pepper

Frozen materials: frozen pea pods, frozen corn, frozen edamame pods

Dehydrated materials: dehydrated carrots, dehydrated onions, dehydrated garlic slices, mushrooms

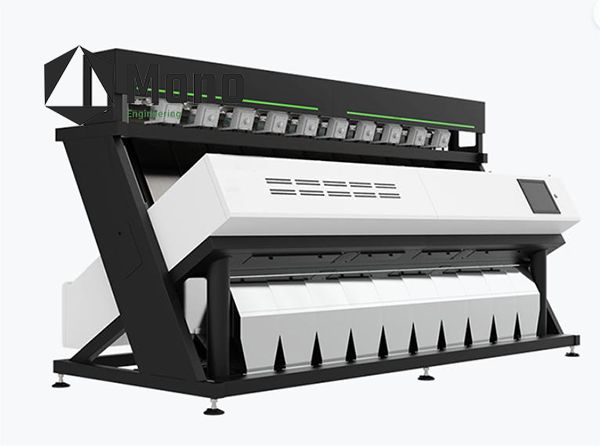

1.6 Channel type color sorting Machine

Suitable for sorting and grading grains, nuts, fruits and vegetables, Chinese medicinal materials, spices, etc. It is equipped with multi-spectral recognition technology, which can sort materials from multiple dimensions such as color, shape, and material, and remove impurities such as mold, discoloration, insect damage, and damage in the materials. It also has functions such as long/short grading, large/small grading, and long/round grading.

Applicable fields:

Nut stir fry: sunflower seeds, raisins, pumpkin seeds, watermelon seeds, sunflower seeds, gourd seeds.

Beans: soybeans, mung beans, red beans, peas, beans, coffee beans

Cereals: wheat, corn, millet, oats

Chinese medicinal herbs: Dodder seed, Goji berry

Spices: Sichuan peppercorns

Oil: Sesame

Seed: Rice Seed
