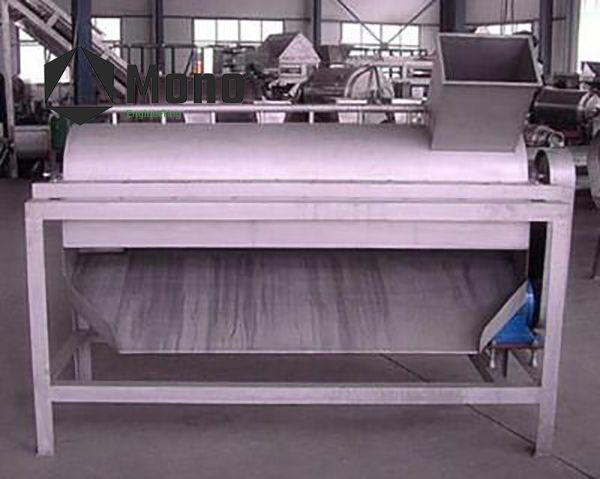

1.Mango Core Remove Machine

This machine is suitable for removing nuclei and separating pulp from stone fruits (mangoes, peaches, apricots with a maturity of over 80%), berries (kiwis, strawberries), and pre cooked softened nuts (apples, pears).

This machine has two models: single pass and double pass. When used for pulping stone fruit, the first rotor uses a coreless rod device to remove the core, and the flesh flows into the lower cylinder, which is completed by the scraper rotor for pulping.

Main structures: transmission system, bearing seat, sleeve shaft, cylinder back cover, slurry disc, cylinder body, spline shaft, screen mesh, scraper (or core removal rod), cylinder front cover, frame, etc

parameter

Processing capacity: 1T/h

Power consumption: 4KW

Core removal sieve: Ф16mm

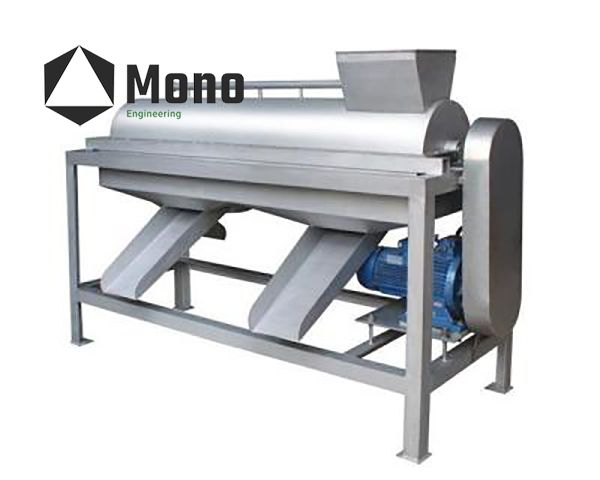

2.Fruit & tomato Seed Removal Machine

This machine is suitable for tomato seed extraction, with a seed extraction rate of over 92%. Adopting coarse crushing, centrifugal separation, fine crushing, seed separation, and slurry separation.

parameter

Production capacity: 7t/h

Rough crushing speed: 190r/min

Fine crushing speed: 380r/min

Screening speed: 190r/min

Beating speed: 650r/min　　

Power consumption: 5.5Kw

Dimensions: 2740 × 930 × 2000mm

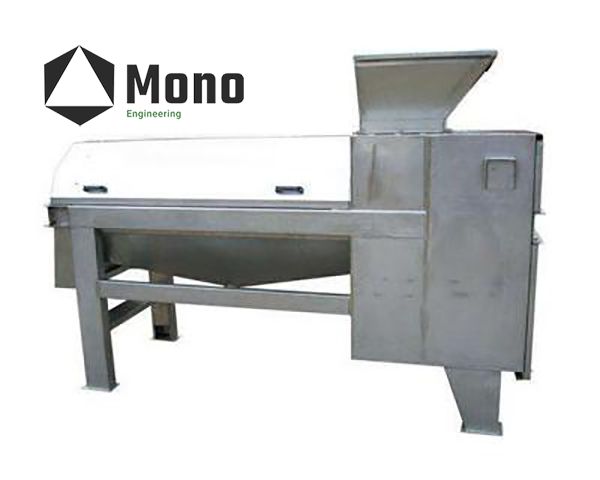

3.Peach & Apricot & Jujube Nucleation and Cleaning Integrated Machine

The integrated machine for removing and washing nuclei is currently an advanced equipment for removing nuclei and washing nuclei internationally, which requires the removal of nuclei and washing nuclei for fruits such as peaches, apricots, and jujubes.

parameter

Production capacity: 6T/h

Power consumption: 22KW

Mesh aperture: 15mm (peach) 10mm (apricot) 3mm (jujube)

Dimensions: 2100 * 845 * 1750mm (6T/h)

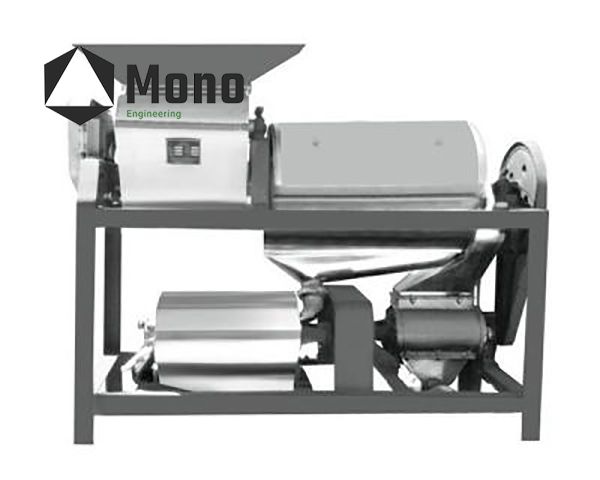

4.Olive & plum & apricot & peach separation seeds and pulp machine

This device is mainly used for separating the nucleus and flesh of stone fruits. For example: olives, green plums, plums, apricots, peaches, etc. The fruit passes through the separation plates at different angles on the rotor to obtain block shaped flesh, which falls into the discharge hopper through the sieve holes. The core is formed by a spiral of several separation plates and discharged towards the outlet. The gap between the sieve and the separation plate depends on the size of the processed material core.

parameter

Production capacity: 1-5t/h

Power consumption: 2.2-4kw

Dimensions: 2600 × 1030 × 1750mm

(Actual production shall prevail)

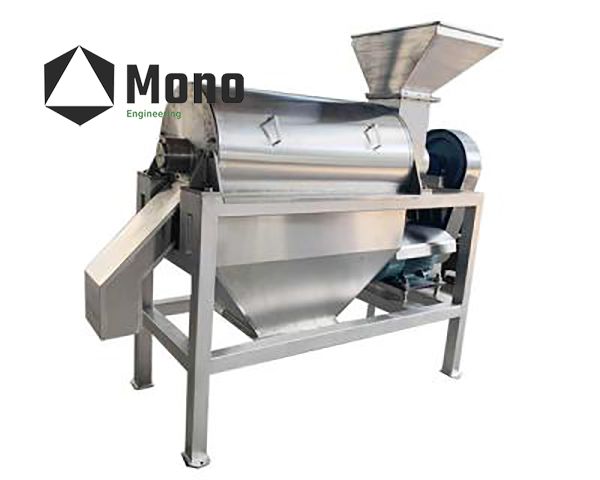

5.Olive core specialized removal machine

Suitable for removing nuclei from olives boiled in salt water. The fruit is separated from its core and flesh by separation plates at different angles on the rotor, resulting in block shaped flesh that falls into the discharge hopper through the sieve holes. The core is formed by a spiral of several separation plates and is discharged towards the slag outlet.

parameter

Processing capacity T/h: 1-2/2-5

Power consumption KW: 3-5.5

Dimensions mm: 2280 × 1000 × 1540mm/3280 × 1200 × 1700mm
