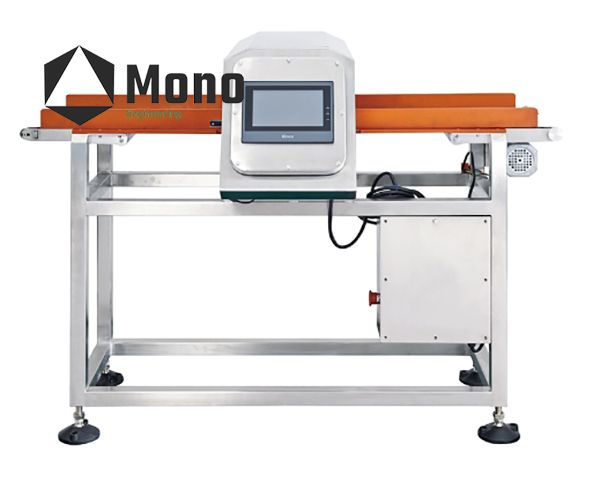

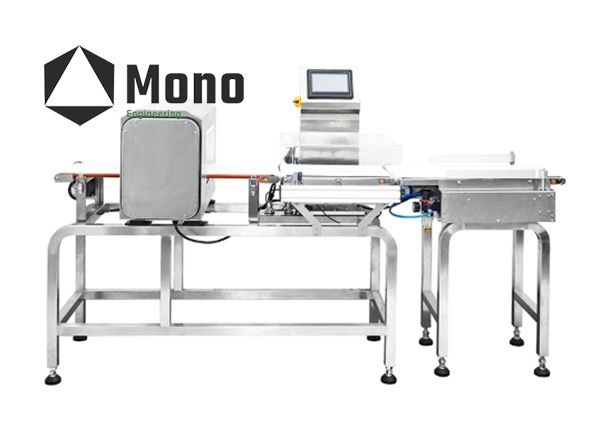

1.1 Metal detection weight detection integrated machine

It can be widely used for the detection of weight and metal after packaging in the food industry, and is a testing equipment for HACCP certification in the food industry and GMP certification in the pharmaceutical industry.

Advantage:

32 languages to choose from, with both gold inspection and re inspection centralized on the same 7-inch standard industrial touch screen, making operation more convenient.

Three speed options can be directly selected on the monitor, suitable for connecting packaging lines of different speeds.

Independent automatic sorting device for re inspection and gold inspection.

The belt is designed to be easy to disassemble, making it more convenient for cleaning and maintenance.

Parameter

Speed:32-52m/min

Elimination method:Blowing/Pulling/Push/Sliding

By size:300(W)x120(H)

Detection sensitivity (mm):Fe:φ0.8  Sus:φ1.5

Power requirements:220V/440W/50/60HZ/2A

Packaging size (mm):1460(L)x1140(W)x1280(H)

package weight:270kg

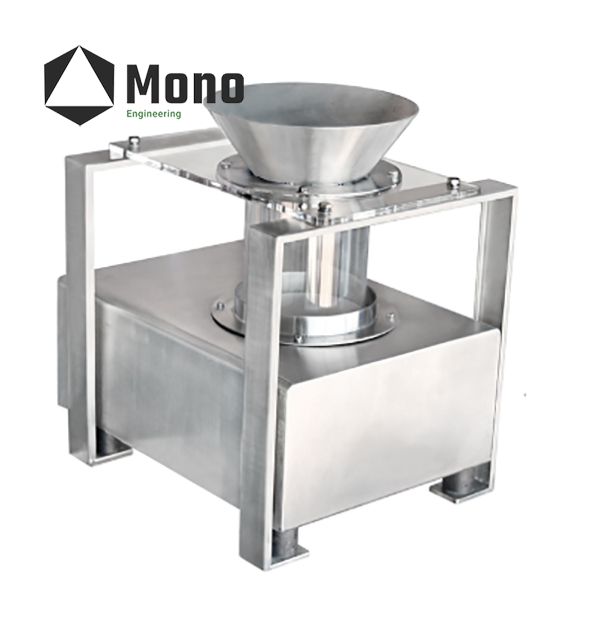

1.2 Falling metal detection machine

This machine is used to detect various powder, bulk, and sheet materials. Suitable for installation in free fall environments such as at the bottom of combination scales and above the feed inlet of vertical packaging machines.

Specification:

Speed:Free fall velocity

Testing port size:φ80mmφ/120mm/φ150mm/φ200mm/φ250mm

Detection sensitivity (mm):Fe:φ0.8  Sus:φ2.0/Fe:φ1.2  Sus:φ2.5/Fe:φ1.5  Sus:φ3.0/Fe:φ2.0  Sus:φ3.5/Fe:φ2.5  Sus:φ3.5

Power requirements:220V/1200W/50/60Hz/0.6A

Packaging size (mm):800(L)x650(W)x490(H)/800(L)x700(W)x530(H)/850(L)x750(W)x520(H)/860(L)x900(W)x590(H)/1000(L)x1000(W)x650(H)

package weight:44kg/46kg/54kg/65kg/75kg

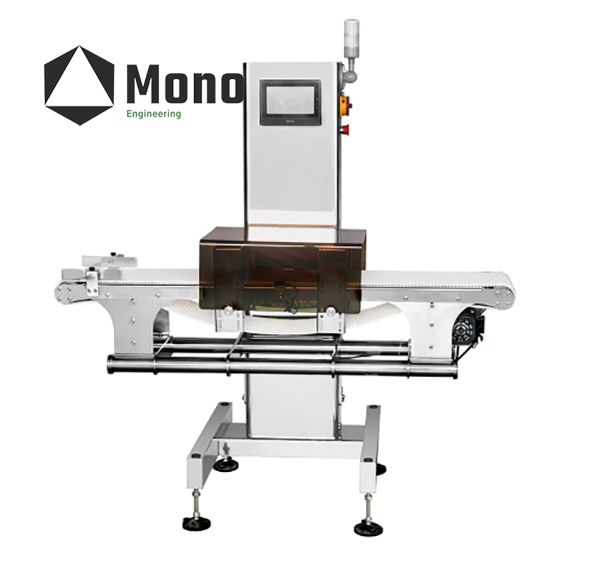

1.3 Horizontal metal detection machine

Adopting advanced digital processing technology, it can identify various magnetic and non-magnetic metals in the product. With a full-color touch screen, it can easily achieve human-machine dialogue, ultra-high sensitivity and stability, and multiple removal mechanisms to choose from, effectively preventing metal from being carried or omitted in the product during production and processing.

Advantage:

32 multi language options, 7-inch standard industrial touch screen, reshaping the industry to a new standard.

Adopting the principle of balanced coil, the detection area signal is fully covered without blind spots.

Adopting multiple digital processing technologies and intelligent algorithms, the functions are more comprehensive, improving detection accuracy and stability.

Adopting phase adjustment technology to suppress the signal interference inherent in the product itself.

The digital control motherboard has more stable and reliable performance, with automatic product setting function, visual waveform detection, and simple and effective debugging.

Large storage space for storing various data such as product parameters, production records, and alarm records.

Multi level user security management to prevent unauthorized personnel from changing product testing parameters.

All stainless steel waterproof design, detachable belt design, easy and convenient maintenance.

Parameter

Speed:30m/min

By size(mm):300(W)x120(H) /400(W)x150(H)/400(W)x250(H)/500(W)x200(H)

Detection sensitivity (mm):Fe: φ0.8 Sus:φ1.5/Fe: φ1.0 Sus:φ2.0/Fe: φ1.5 Sus:φ3.0/Fe: φ1.2 Sus:φ2.5

Power requirements:220V/180W/50/60HZ/0.8A /220V/180W/50/60HZ/0.8A/220V/180W/50/60HZ/0.8A/220V/220W/50/60HZ/1A

Packaging size (mm):1450(L)x890(W)x1080(H) /1450(L)x1010(W)x1110(H)/1450(L)x1010(W)x1210(H)/1450(L)x1110(W)x1160(H)

package weight:200kg/230kg/240kg/260kg

1.4 Aluminum foil gold inspection machine

This machine is suitable for detecting aluminum foil packaging products such as coffee bags, peanuts, dried meat products, candies, chocolates, etc. It is also used for metal foreign object detection in industries such as food, medicine, cosmetics, bonded products, and chemicals. The packaging status of materials can be in bulk, bagged, bottled, boxed, and other forms.

Advantage

Equipped with a 7-inch color screen and pre installed operation help menu, it facilitates human-machine collaboration and learning, and can perform intelligent sampling and learning functions based on material characteristics.

The application of high-sensitivity sensors with integrated control methods effectively solves the detection capability of magnetic metal foreign objects in aluminum film and aluminum foil packaging products.

Adopting a 32-bit microprocessor for powerful digital signal analysis and processing, the system's sensitivity, anti-interference ability, and long-term stability have been improved.

Data can be backed up through USB.

Support software upgrades for easy system maintenance.

Parameter

Speed:15-35m/min

By size (mm):Width: 240mm Height adjustable: 20-150mm

Detection sensitivity (mm):Fe:φ1.5  Sus:φ2.5

Power requirements:220V/180W/50/60Hz/0.8A

Packaging size (mm):1570(L)x880(W)x1490(H)

package weight:170kg
