Introduction

GH3039 Superalloy (GH39) is a single-phase austenitic solid-solution strengthened nickel-chromium based superalloy with moderate thermal strength and good thermal fatigue performance below 800°C, and excellent oxidation resistance up to 1000°C. It offers good cold formability, good weldability, and a stable microstructure for long-term service below 850°C. Ideal for aircraft engine combustion chambers, afterburner components, and gas turbine casings. Available in sheet, plate, bar, wire, tube, and forgings per GB/T, ASTM, AMS, or BS standards.

Chemical components(%)

Mechanical properties

Physical properties

GH3039 Superalloy Available Products and Standard

1. GB/T 14992 (Superalloys – Classification and Specifications)

Type: Plate / Sheet / Round bar / Strip / Tube / Pipes / Wire / Forgings

Size Range:

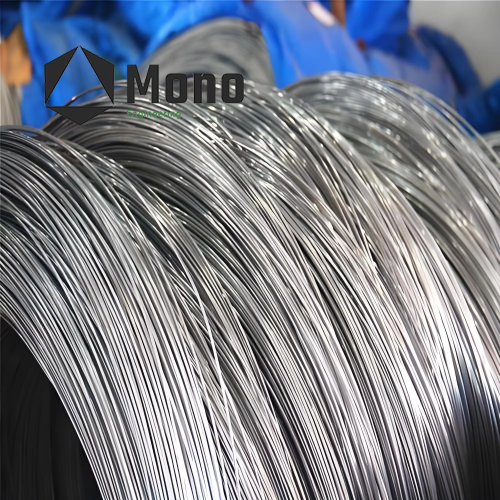

• GH3039 Alloy Wire: 0.1 – 15.0 mm dia

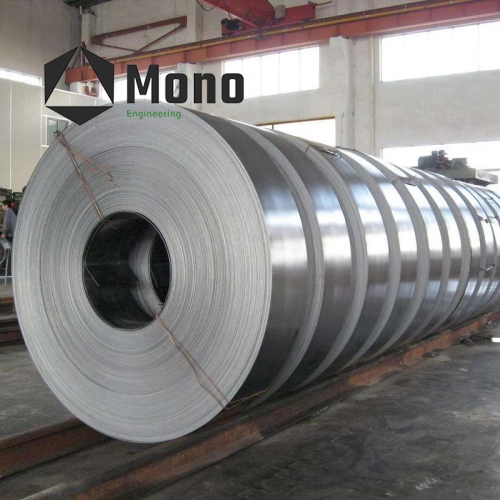

• GH3039 Alloy Strip: 0.05 – 5.0 mm thick × 5 – 500 mm wide

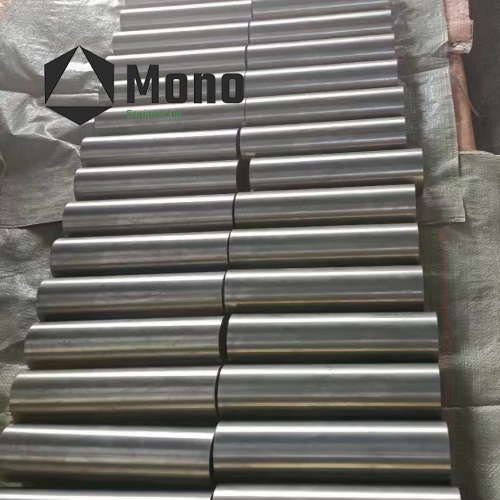

• GH3039 Alloy Bar: 8 – 355 mm dia

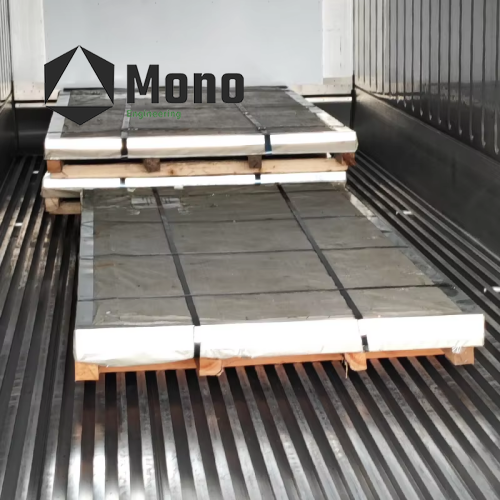

• GH3039 Alloy Sheet / Plate: 0.5 – 180 mm thick

• GH3039 Alloy Tube: Custom sizes available

Surface: Annealed, Bright, Pickled, Ground

Testing: Chemical analysis, mechanical test (tensile strength, yield strength, elongation), high-temperature oxidation test, dimensional inspection

2. ASTM B564 (Standard Specification for Nickel Alloy Forgings)

Grade: GH3039 / Ni-Cr based solid-solution strengthened alloy

Type: Bar / Forging / Rod

Size Range:

• GH3039 Alloy Bar: 8 – 355 mm dia (hot rolled or cold drawn)

• GH3039 Alloy Forging: Custom sizes available per customer drawing

Surface: Annealed, Pickled, Ground, Turned

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), high-temperature oxidation test, ultrasonic test, dimensional inspection

3. Reference Standards (Available Upon Request)

• ASTM B446 – Nickel-Chromium-Molybdenum Alloy Bar

• ASTM B704 – Nickel Alloy Welded Tube

• ASTM B705 – Nickel Alloy Welded Pipe

• ASTM B751 – Nickel Alloy Tube General Requirements

• ASTM B775 – Nickel Alloy Pipe General Requirements

Advantages

(1)Excellent high temperature oxidation resistance up to 850°C: GH3039 nickel based superalloy forms a stable protective oxide layer, preventing scaling and extending service life in gas turbine combustion chambers and afterburner components.

(2)Good solid solution strengthening with Mo and Al: GH3039 round bar and sheet maintain stable tensile strength and creep resistance under prolonged thermal exposure, reducing deformation in thin-walled structures.

(3)Outstanding cold formability and weldability: GH3039 alloy wire and strip enable complex stamping, deep drawing, and argon arc welding without post-weld heat treatment cracks, ideal for aircraft engine parts.

(4)High thermal fatigue resistance:GH3039 superalloy plate withstands rapid temperature cycling from room temperature to 850°C without thermal cracking, suitable for flame tubes and transition ducts.

(5)Excellent resistance to fuel gas corrosion: GH3039 seamless tube and pipe resist sulfidation and vanadium attack in high sulfur fuel environments, ensuring reliable performance in marine and industrial gas turbines.

Applications

(1)Aero engine combustion chamber parts – GH3039 sheet and strip are widely used for flame tubes, louver panels, and connecting rings in jet engines requiring high temperature oxidation resistant alloy.

(2)Gas turbine afterburner components – GH3039 nickel base alloy is specified for tail cones, flame holders, and spray bars where thermal shock resistance and hot corrosion protection are critical.

(3)Heat exchangers and exhaust systems – GH3039 seamless tube serves in high temperature recuperators and exhaust piping for industrial gas turbines and power generation equipment.

(4)Turbocharger housings and heat shields – GH3039 plate and bar offer reliable creep strength and oxidation barrier for heavy duty diesel and marine engines operating up to 800°C.

(5)Chemical and petrochemical furnace parts – GH3039 alloy wire and mesh are applied in radiant tubes, retorts, and catalyst grids requiring good resistance to oxidizing and carburizing atmospheres.
