Description:
The Mono Cabinet Dryer Machine (JMHPK-22XC-1) offers an energy-efficient solution for medium to large-scale food drying. It combines high loading capacity with a gentle drying process that preserves the quality of the food. The use of 304 stainless steel for the trays enhances durability and cleanliness, while the 10.6 kW/h power consumption ensures cost-effective energy use. The broad ambient to 75°C temperature range further provides versatility in handling a wide variety of drying tasks.
This machine is ideal for commercial food processors, restaurants, or businesses looking for a reliable drying solution.
Technical specification:
Model | Unit | JMHPK-22XC-1 | JMHPK-22XC-2 |
Temp.Control | ℃ | ambient-75C | ambient-75C |
Dehumi. Capacity | L/h | 20 | 20 |
Functions | Heat dry, Cool dry, Dehumidify | Heat dry, Cool dry, Dehumidify | |
Trays | PCS | 48 | 96 |
Trays Size | mm | 810*595*70 | 810*595*70 |
Drying Cabinet Size | mm | 1200*1200*1400 | 2400*1200*1400 |
Performance | |||
Rated Power Input | KW | 10.6 | 10.6 |
Rated Current Input | A | 17.9 | 17.9 |
Voltage /Frequency | V.HZ | 380V/50Hz | 380V/50HZ |
Emergency Auxiliary Heating Power Input | KW | 6 | 9 |
Refrigerant Type | R134a | R134a | |
Weight and packing | |||
Operation ambient Temp. | ℃ | -55 | -55 |
Weight | kg | 500 | 1000 |
Machine Dimension | mm | 1950*1310*2250 | 3150*1310*2250 |

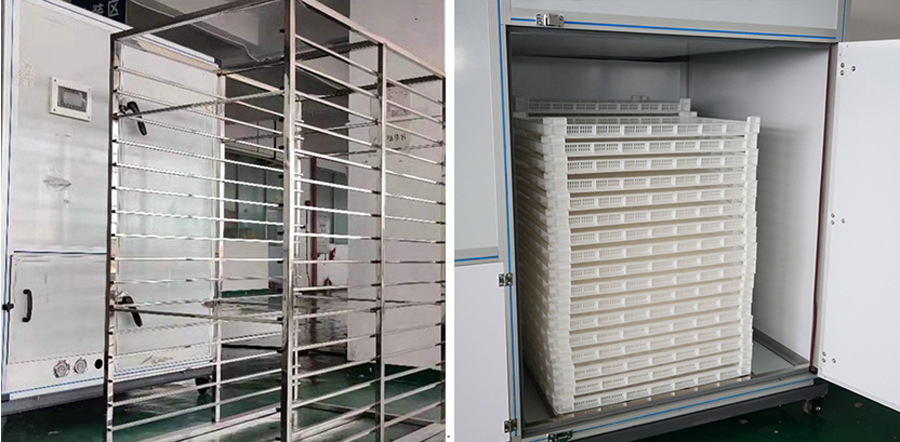

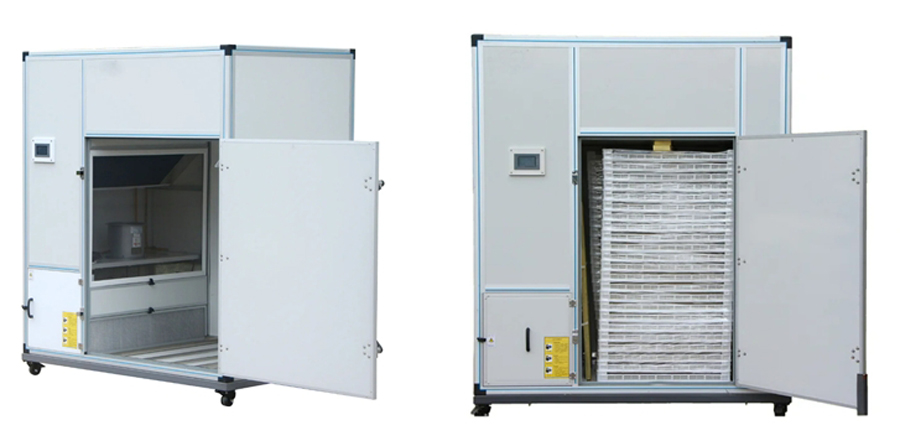

Products details :
It is all in one unit, no need installation. Once you receive the machine, connect the power, put the products in the machine, set the drying parameters, then the machine will dry the products automatically. Very easy to use, no need staff to stand by 24 hours.
Our Cabinet heat Pump Advantage :
Heat pump application
Dehydrate Material | Products |
Food | Sweet Potato,Pet Food ,Persimmon,,Hawthorn,Purple Sweet Potato,Black Wolfberry |
Fruit | Mango,Grape,Apple,Lemon,Banana,Kiwi,Apricot,Fig |
Seafood | Shrimp,Sea Cucumber,Squid ,Abalone,Fish ,Whiteleg Shrimp ,Kelp |
Meat | Sausage,Chicken Feet,Pork Skin,Mutton,Chicken ,Duck,Beef Jerky,Beef Slices |
Vegetable | Mushroom,Chili ,Ginge,Cucumber ,Cassava,Radish |
Nuts | Red Dates,Cocoa Beans,Coffee Beans,Peanut,Walnut,Pistachios,Melon Seeds ,Cashew ,Pine Nut,Almond |
Peice | Pepper,Anise,Clove,Nutmeg,Cardamom,Bay Leaf |
Flower | Rose,Jasmine,Yellow Chrysanthemum,Chamomile,Loquat Flowers,Osmanthus Flowers |
Tea Dehydrate | Tea Dehydrate |
