Scope

This specification covers the chemical, mechanical, and metallurgical requirements for wrought annealed Ti6Al4V ELI(extra low interstitial) alloy(R56401) For to be used in the manufacture of surgical implants.

Product Classification(Size)

1.Strip-Any product under 0.1875 in.(4.75 mm)in thickness and under 24 in.(610 mm)wide

2.Sheet—Any product under 0.1875 in.(4.75 mm)in thickness and 24 in.(610 mm)or more in width

3.Plate—Any product 0.1875 in.(4.75 mm)thick and over and 10 in.(254 mm)wide and over, with widths greater than five times thickness.Plate up to 4.00 in.(101.60 mm),thick inclusive is covered by this specification

4.Bar—Round bars and flats from 0.1875 in.(4.75 mm)to 4.00 in.(101.60 mm)in diameter or thickness (other sizes and shapes by special order)

5.Forging Bar—Bar as described in 4.4,used for production of forgings,may be furnished in the hot rolled condition

6.Wire-Rounds less than 0.1875 in.(4.75 mm)in diameter

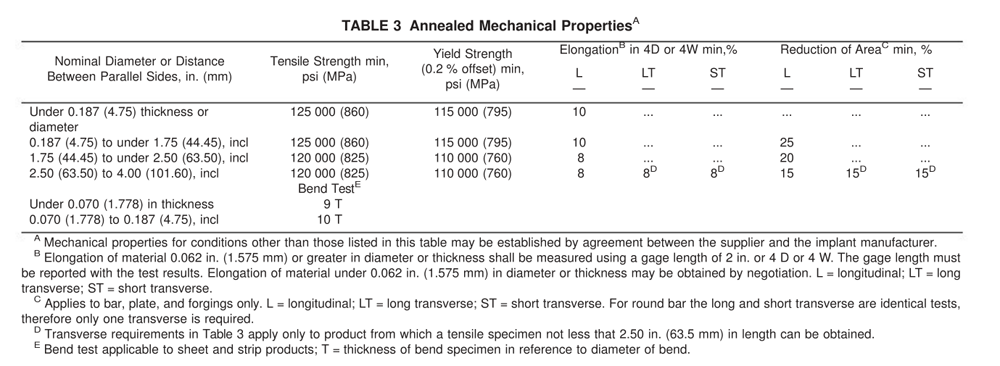

Annealed Mechanical Properties

Materials and Manufacture

1.The various titanium mill products covered in this specification normally are formed with the conventional forging and rolling equipment found in primary ferrous and nonferrous plants.The alloy is usually multiple melted in arc furnaces(including furnaces such as plasma arc and electron beam)of a type conventionally used for reactive metals.

2.Finish The mill product may be furnished to the implant manufacturer as mechanically descaled or pickled,sandblasted,chemically milled,ground,machined,peeled,polished,combinations of these operations,or as specified by the purchaser.

3.Condition-Material shall be furnished in the annealed or cold-worked condition.
